TAG-ALONG

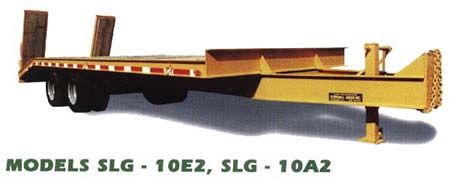

10 TON PAYLOAD, DOUBLE AXLE TAG-ALONG


THESE 10 TON PAYLOAD, DOUBLE AXLE TRAILERS ARE AVAILABLE IN EITHER ELECTRIC OR AIR BRAKE CONFIGURATIONS. THE AIR BRAKE VERSION COMES STANDARD WITH TANDEM DUAL WHEEL ARRANGEMENT. ANTILOCK AIR BRAKING SYSTEM ARE STANDARD EFFECTIVE MARCH 1998. TRAILERS COME STANDARD WITH A 17' DECK LENGTH AND CAN BE CONSTRUCTED TO ANY LENGHT TO MEET THE CUSTOMERS SPECIFICATIONS.
THE CONTINUOUS I-BEAM MAINFRAME STRUCTURE IS FABRICATED FROM 10" WEB-DEPTH STEEL. THESE I-BEAMS ARE SPECIFIED AT 19LBS./LINEAR FT. MAKING IT ONE OF THE STRONGEST BUILT TRAILERS IN ITS WEIGHT CLASS.


THE CRAWLER RATED RAMPS ARE STANDARD ON ALL MODELS. ERGONOMICALLY DESIGNED TO MINIMIZE WORKER BACK INJURIES DUE TO THEIR UPRIGHT STORAGE POSITION. ALSO ALLOWS FOR ADDITIONAL SPACE FOR EQUIPMENT PLACEMENT.




HEAVY DUTY DROP DOWN SCREW LEG JACK, RATED FOR 12,000 LBS. IS STRATEGICALLY PLACED WITHIN THE DRAW-BAR TO PROVIDE MAXIMUM STATIC STABILITY, DUAL LEG JACKS ARE OPTIONAL PROVIDING A STABLE PLATFORM TO WORK FROM.
